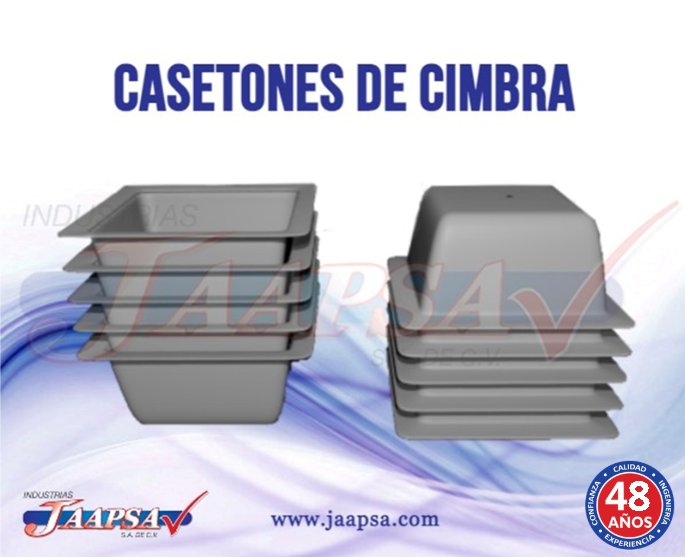

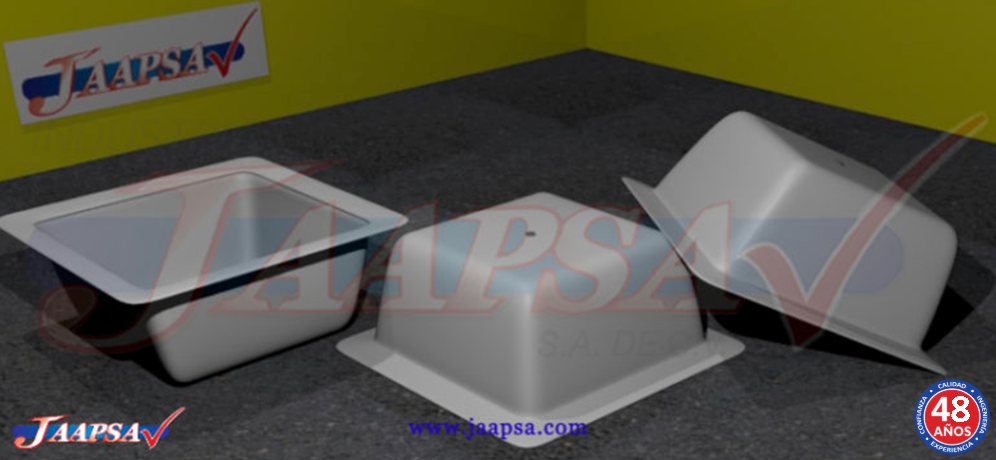

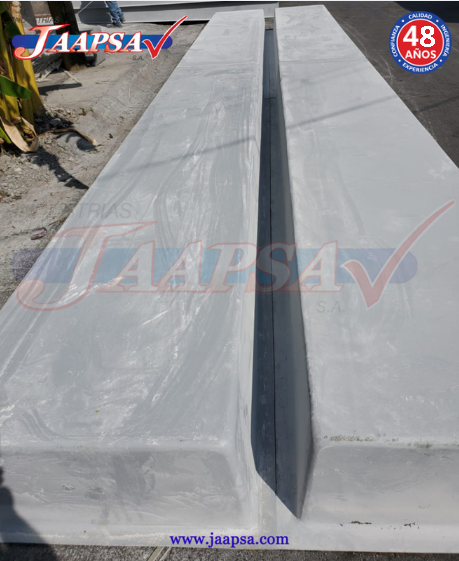

Industrias JAAPSA S.A. de C.V. design CASETONES for all type of constructions and that reunite all the exigencies of continuous use.
![](https://jaapsa.com/wp53/wp-content/uploads/2022/06/Caseton-medida-1.jpg)
![](https://jaapsa.com/wp53/wp-content/uploads/2022/06/Forma-caseton-final-1.jpg)
![](https://jaapsa.com/wp53/wp-content/uploads/2022/06/caseton-con-hueco-1.jpg)

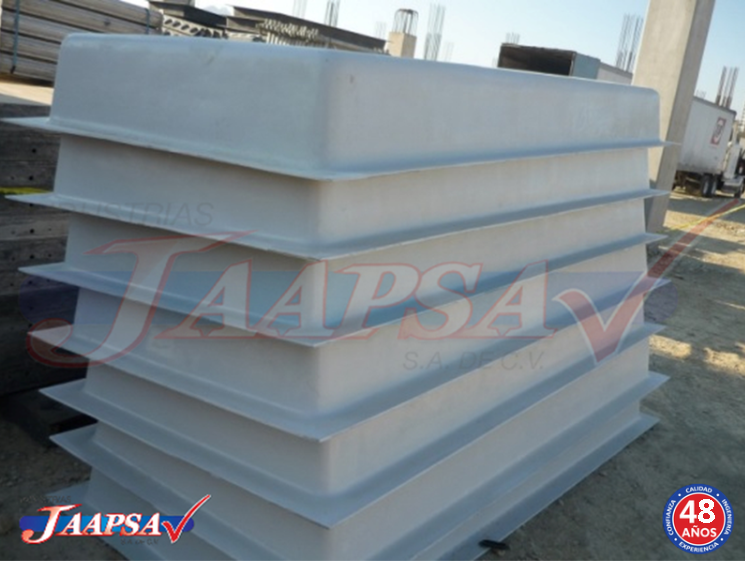

![](https://jaapsa.com/wp53/wp-content/uploads/2022/06/Pila-de-casetones-rectangular-1.jpg)
![](https://jaapsa.com/wp53/wp-content/uploads/2022/06/Caseton-rectangular-1-1.jpg)
![](https://jaapsa.com/wp53/wp-content/uploads/2022/06/Casetones-Largo-2-1-843x1024.jpg)
ADVANTAGES
- Convex and pyramidal design, allows to clear easily.
- Easy to transport and reduces the transportation cost.
- With a durability of more than 15 uses giving it proper handling. *
- Finished excellence in of the concrete one.
- Light, it facilitates his positioning and handling.
![](https://jaapsa.com/wp53/wp-content/uploads/2022/06/casetones-de-cimbra-con-concreto.jpg)
![](https://jaapsa.com/wp53/wp-content/uploads/2022/06/CASETONES-DE-CIMBRA.jpg)
![](https://jaapsa.com/wp53/wp-content/uploads/2022/06/Caseton-ligero-1-768x355-1.jpg)

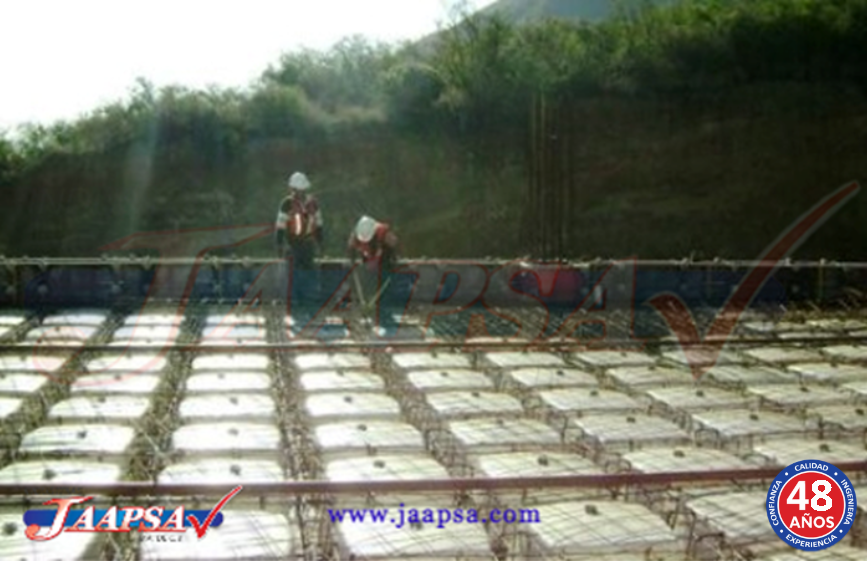

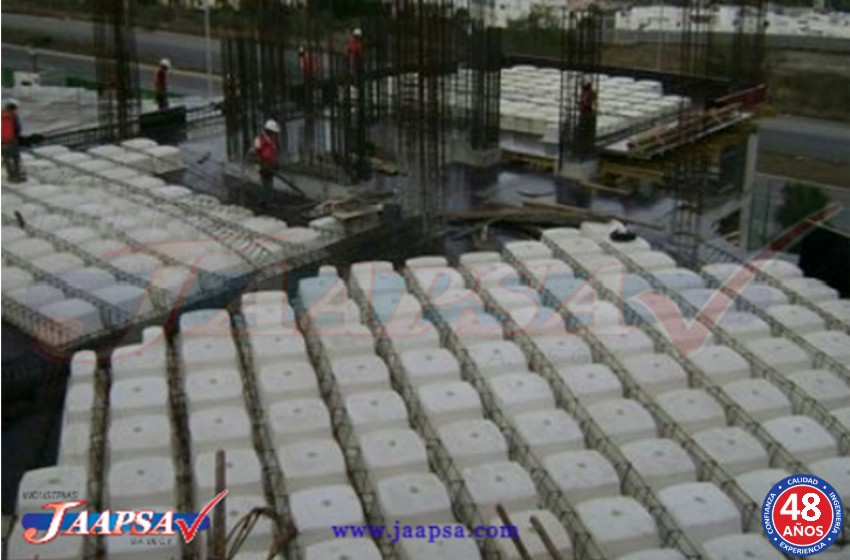

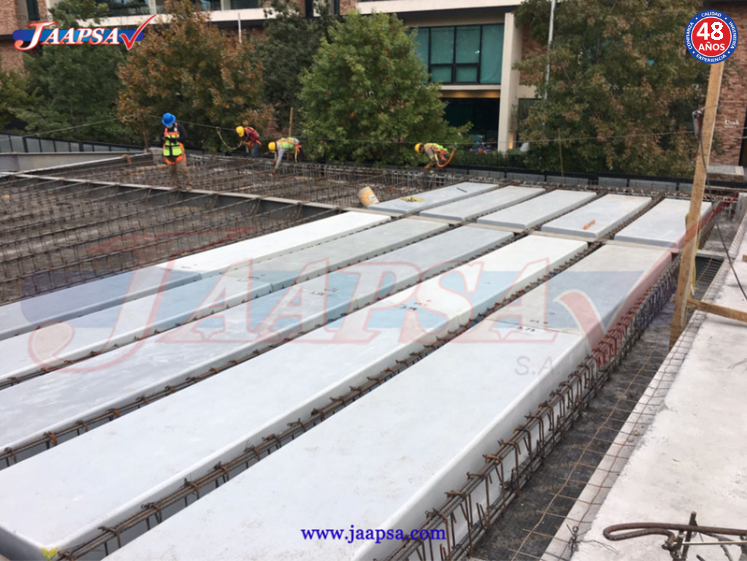

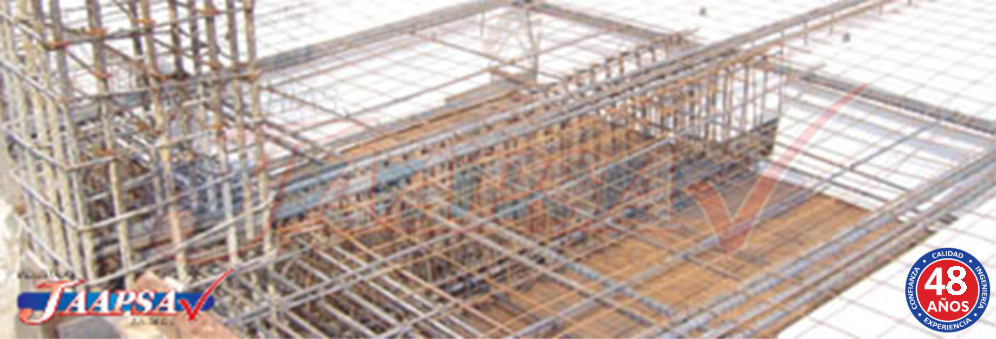

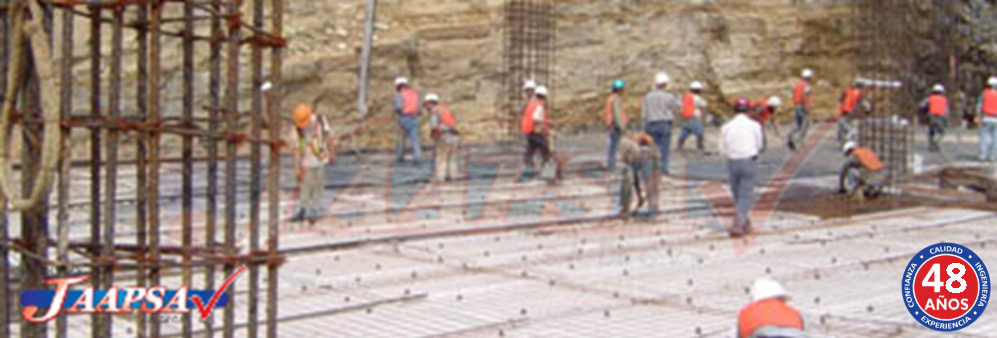

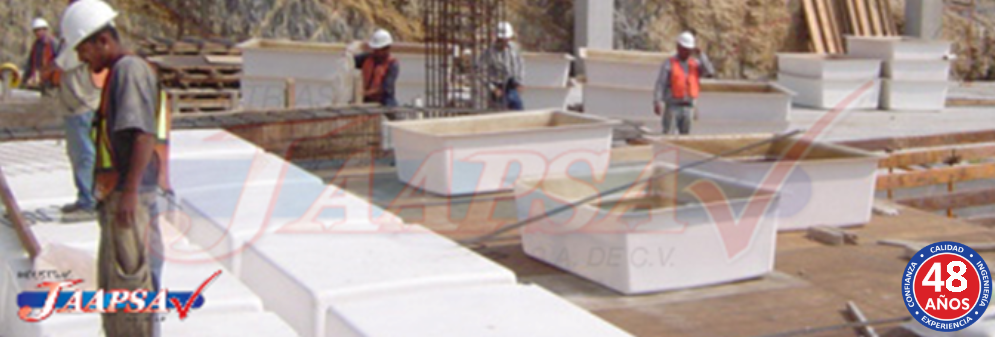

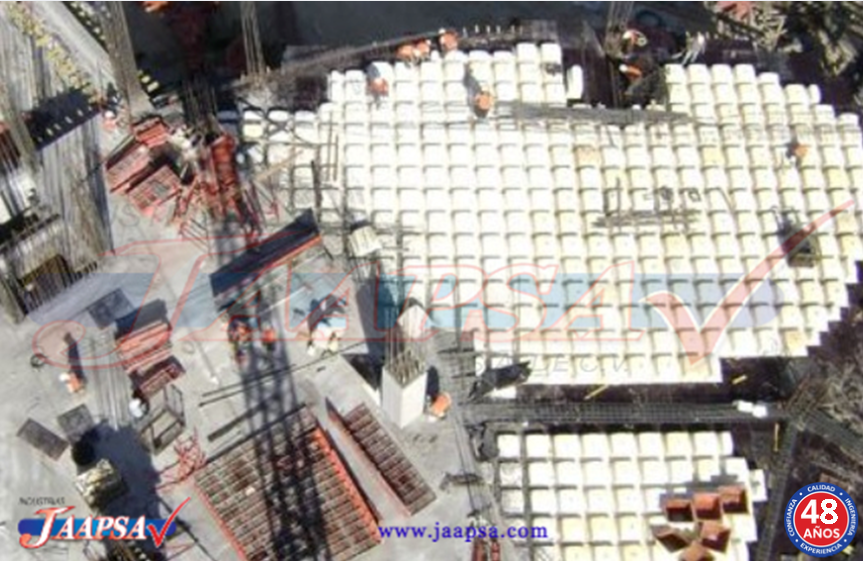

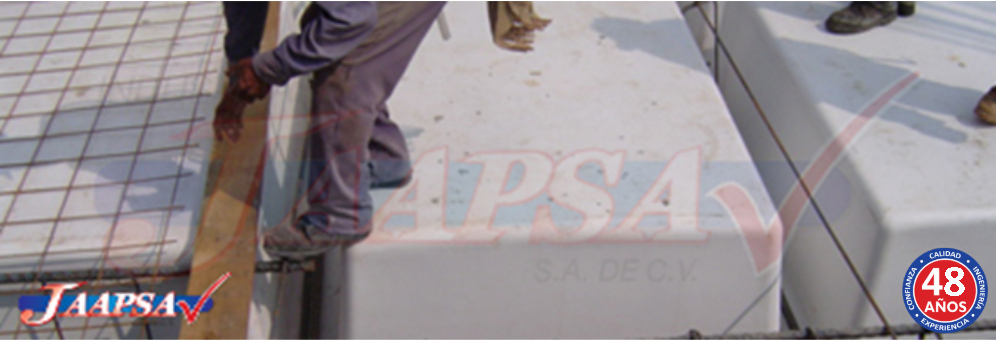

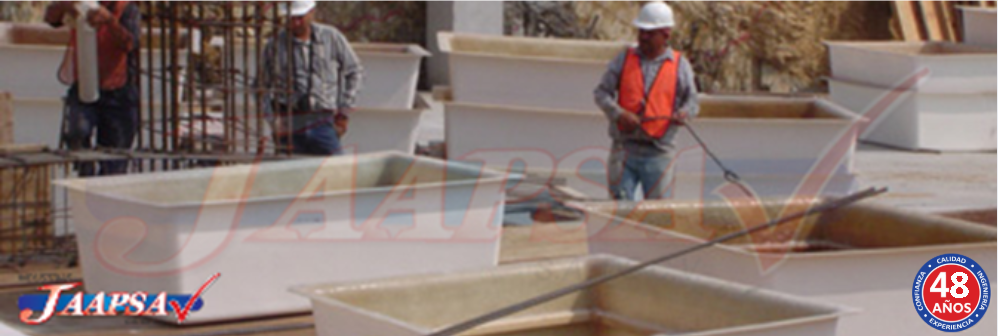

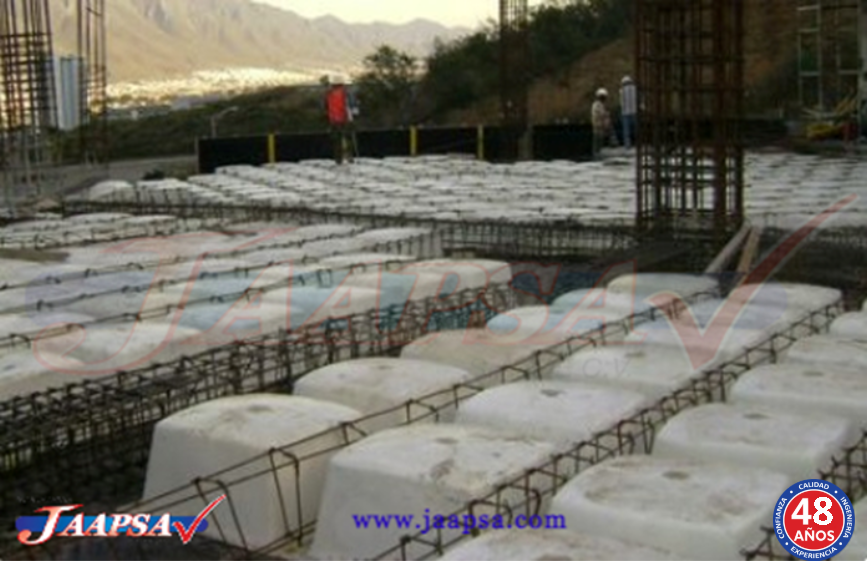

Installation
![](https://jaapsa.com/wp53/wp-content/uploads/2022/06/casetonesbanner_instalacion-2-1.jpg)
![](https://jaapsa.com/wp53/wp-content/uploads/2022/06/casetonesbanner_instalacion2-2-1.jpg)
![](https://jaapsa.com/wp53/wp-content/uploads/2022/06/casetonesbanner_instalacion4-1-1.jpg)
![](https://jaapsa.com/wp53/wp-content/uploads/2022/06/casetonesbanner-1-1.jpg)
![](https://jaapsa.com/wp53/wp-content/uploads/2022/06/casetonesbanner_instalacion5-2-1.jpg)
Caseton Strength Tests from Industrias JAAPSA
We are the only company in the country that our casetones have a load resistance test.
Brochure
![](https://jaapsa.com/wp53/wp-content/uploads/2020/08/promocioncasetones.jpg)
Industrias JAAPSA S.A. de C.V., guarantees his CASETONES with more than 10 uses as long as them of a maintenance necessary and the following instructions:
1. - Before each use will be due to clean to the surface with water and a brush.
2. - Casetones Will have to hold solely nailing in the perforations of the ends with nail 1 ½” of length with head at the most, trying that are aligned well and to top with others.
3.- In the event that due to the need for structural calculation the ribs have
a width greater than that provided by the eyebrows, the separation between
both boxes must be filled with cement and plaster mortar paste or
with a strip of fibreboard, wood, plywood or cardboard.
4.-Before placing the reinforcement iron it will have to be smeared with special grease for each piece.
5.-Before proceeding to deform the box it is necessary to remove everything
shoring taking care not to damage it. Use rubber mallet and wedges
rubber to detach from concrete.
6.- Casetón must be store piling up itself to a height that its correct maneuver allows, avoiding fallen and bad handlings.
7.- It will not have to use casetón for another aim that is not placed of slabs.
